Brick and Stone Specials | Bullnose Bricks | Plinths

AN.2 External AngleLeft or right hand (if surface has textured finish)

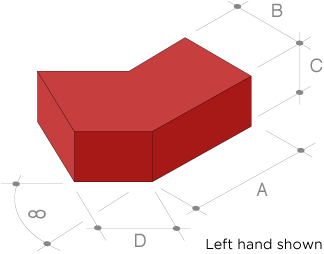

AN.2 External Angle

Left or right hand (if surface has textured finish)

Type	A	B	C	D	∞
AN.2.1	159¹	102	65	102	30⁰
AN.2.2	159¹	102	65	102	45⁰
AN.2.3	159¹	102	65	102	60⁰
AN.2.4	215¹	102	65	102	30⁰
AN.2.5	215¹	102	65	102	45⁰
AN.2.6	215¹	102	65	102	60⁰

¹ Suitable for quarter bond without cutting.
² Suitable for half bond without cutting.

Note: Some types of bricks may not be available with A = 215mm.

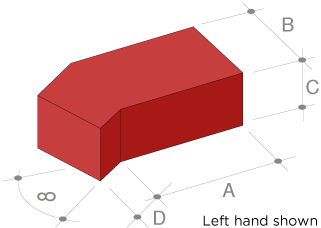

AN.3 Internal Angle (dog leg)Left or right hand (if surface has textured finish)

AN.3 Internal Angle (dog leg)

Left or right hand (if surface has textured finish)

Type	A	B	C	D	∞
AN.3.1	164 ²	102	65	51	30⁰
AN.3.2	164 ²	102	65	51	45⁰
AN.3.3	164 ²	102	65	51	60⁰
AN.3.4	159 ¹	102	65	102	30⁰
AN.3.5	159 ¹	102	65	102	45⁰
AN.3.6	159 ¹	102	65	102	60⁰
AN.3.7	215 ²	102	65	102	30⁰
AN.3.8	215 ²	102	65	102	45⁰
AN.3.9	215 ²	102	65	102	60⁰

¹ Suitable for quarter bond without cutting.
² Suitable for half bond without cutting.

Note: Some types of bricks may not be available with A = 215mm.

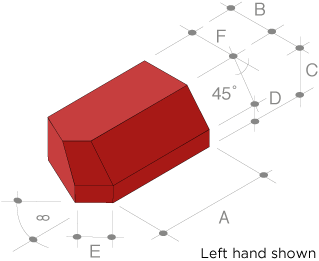

PL.9 Plinth Squint

PL.9 Plinth Squint

Type	A	B	C	D	E	F	∞
PL.9.1	164	102	65	9	51	46	30⁰
PL.9.2	164	102	65	23	51	60	30⁰
PL.9.3	164	102	65	9	51	46	45⁰
PL.9.4	164	102	65	23	51	60	45⁰
PL.9.5	164	102	65	9	51	46	60⁰
PL.9.6	164	102	65	23	51	60	60⁰

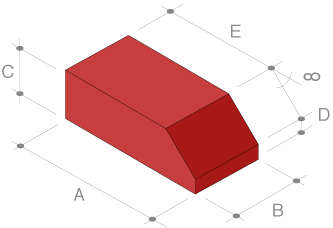

PL.2 Plinth Header

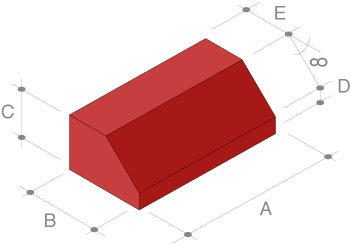

PL.3 Plinth Stretcher

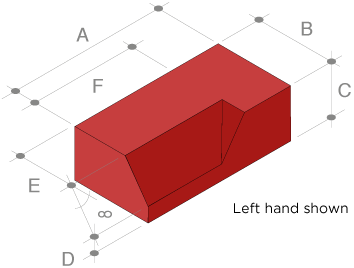

PL.4 Plinth Internal Return - Long

Type	A	B	C	D	E	∞
PL.2.1	215	102	65	9	159	45⁰
PL.2.2	215	102	65	23	173	45⁰

Type	A	B	C	D	E	∞
PL.3.1	215	102	65	9	46	45⁰
PL.3.2	215	102	65	23	60	45⁰

Type	A	B	C	D	E	F	∞
PL.4.1	215	102	65	9	46	169	45⁰
PL.4.2	215	102	65	23	60	155	45⁰

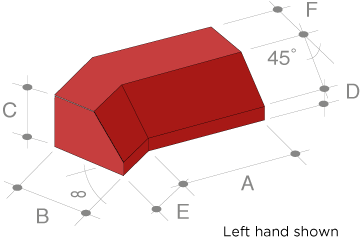

PL.6 Plinth Internal Angle

PL.6 Plinth Internal Angle

Type	A	B	C	D	E	F	∞
PL.6.1	164 ¹	102	65	9	51	46	30⁰
PL.6.2	164 ¹	102	65	23	51	60	30⁰
PL.6.3	164 ¹	102	65	9	51	46	45⁰
PL.6.4	164 ¹	102	65	23	51	60	45⁰
PL.6.5	164 ¹	102	65	9	51	46	60⁰
PL.6.6	164 ¹	102	65	23	51	60	60⁰
PL.6.7	159 ²	102	65	9	102	46	30⁰
PL.6.8	159 ²	102	65	23	102	60	45⁰
PL.6.9	159 ²	102	65	9	102	46	45⁰
PL.6.10	159 ²	102	65	23	102	60	45⁰
PL.6.11	159 ²	102	65	9	102	46	60⁰
PL.6.12	159 ²	102	65	23	102	60	60⁰
PL.6.13	215 ¹	102	65	9	102	46	30⁰
PL.6.14	215 ¹	102	65	23	102	60	30⁰
PL.6.15	215 ¹	102	65	9	102	46	45⁰
PL.6.16	215 ¹	102	65	23	102	60	45⁰
PL.6.17	215 ¹	102	65	9	102	46	60⁰
PL.6.18	215 ¹	102	65	23	102	60	60⁰

¹ Suitable for half bond without cutting.
² Suitable for quarter bond without cutting.

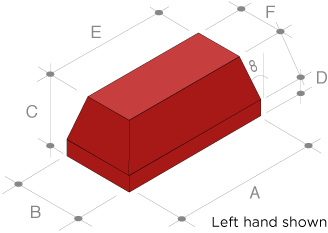

PL.7 Plinth External Return

Type	A	B	C	D	E	F	∞
PL.7.1	215	102	65	9	159	46	45⁰
PL.7.2	215	102	65	23	173	60	45⁰

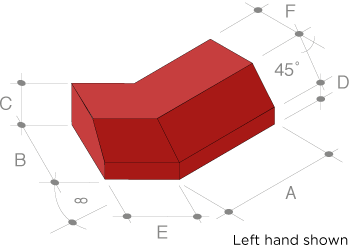

PL.8 Plinth External Return

PL.8 Plinth External Return

Type	A	B	C	D	E	F	∞
PL.8.1	159 ²	102	65	9	102	46	30⁰
PL.8.2	159 ²	102	65	23	102	60	30⁰
PL.8.3	159 ²	102	65	9	102	46	45⁰
PL.8.4	159 ²	102	65	23	102	60	45⁰
PL.8.5	159 ²	102	65	9	102	45	60⁰
PL.8.6	159 ²	102	65	23	102	60	60⁰
PL.8.7	215 ¹	102	65	9	102	46	30⁰
PL.8.8	215 ¹	102	65	23	102	60	30⁰
PL.8.9	215 ¹	102	65	9	102	46	45⁰
PL.8.10	215 ¹	102	65	23	102	60	45⁰
PL.8.11	215 ¹	102	65	9	102	46	60⁰
PL8.12	215 ¹	102	65	23	102	60	60⁰

¹ Suitable for half bond without cutting.
² Suitable for quarter bond without cutting.

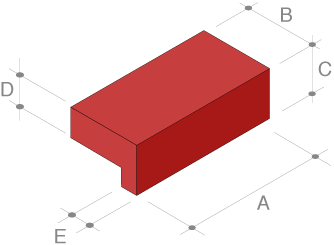

PS.2 Pistol Stretcher

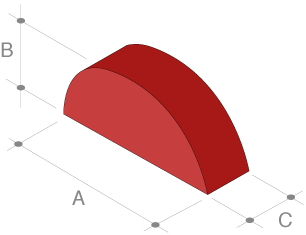

CP.1.1 Half Round Coping
CP.1.2 Half Round Capping
CP.2.1 Saddleback Coping
CP.2.2 Saddleback Capping

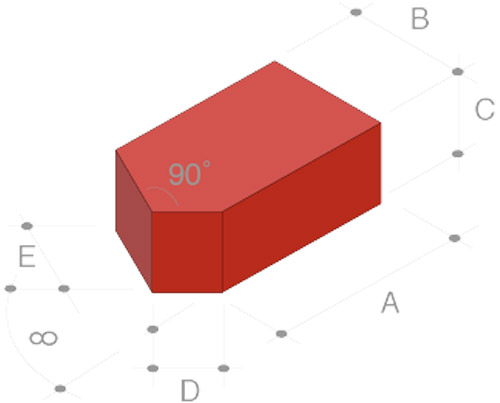

AN.1 Squint BricksLeft or right hand (if surface has textured finish)

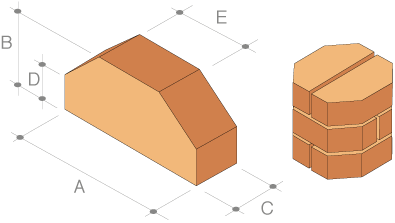

AN.6 Double Cant Bricks
BN.1 Single Bullnose BrickLeft or right hand (if surface has textured finish)

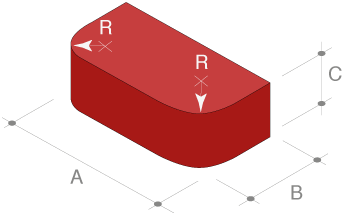

BN.2 Double Bullnose BrickBullnose Bricks

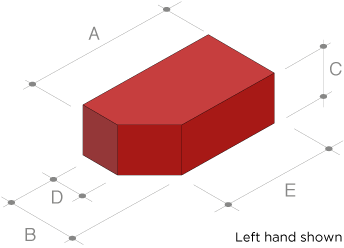

AN.5 Single Cant BricksLeft or right hand (if surface has textured finish)

Type	A	B	C	D	E
PS.2.1	215	102	65	35	20

Type	A	B	C	D1	D2
CP.1.1	305	153	65	13	15

Type	A	B	C
CP.1.2	215	108	65

Type	A	B	C	D1	D2	E
CP.2.1	305	153	65	13	15	50

Type	A	B	C	D
CP.2.2	215	123	65	50

Type	A	B	C	D	E	∞
AN.1.1	164	102	65	51	89	30⁰
AN.1.2	164	102	65	51	94	45⁰
AN.1.3	164	102	65	51	117	60⁰

Type	A	B	C	D	E
AN.6.1	215	102	65	46	103
AN.6.2	215	102	65	60	131

Type	A	B	C	R
BN.1.1	215	102	65	25
BN.1.2	215	102	65	51

Type	A	B	C	R
BN.2.1	215	102	65	25
BN.2.2	215	102	65	51

Type	A	B	C	D	E
AN.5.1	215	102	65	46	159
AN.5.2	215	102	65	60	173
